Applications
The capacitors are designed for general-purpose applications, and also for using with non-sinusoidal voltage and currents, such as resonant circuits, filtering or commutation.
Quality approval:
(UL 810 certificated)
RoHS conformity
Quality management: ISO 9001:2008
Types of products:
Specification and Performance
| Standards | IEC 61071 |
|---|---|
| Installation | Indoor use, maximum above sea level 2000M, maximum permissible humidity 95% |
| Capacitance tolerance | ±10%, -5%/+10%, or ±5% |
| Operating temperature of case | -25℃ to +70℃ |
| Dielectric | Metallized polypropylene film with self-healing technology |
| Dissipation factor | <0.1% |
| Test voltage between terminals | Unx2.15 VDC, 10s |
| Test voltage between terminals and case | 3000Vac, 10s |
| Insulation resistance (Between terminals and case) | above 2000MΩ |
| Equivalent series resistance (ESR) | < 10 mΩ |
| Equivalent series inductance (ESL) | < 50 nH |
| Impregnated oil | Non PCB, Rapeseed oil |
| Safety device | Overpressure disconnector UL 810 approval, AFC 10000A, File no. E112211 |
| Discharge resistor (Optional) | The residual voltage drops to 50V or lower in 1 minute after capacitor being disconnected from power source. |
| Case | Cylindrical aluminum can |
| Terminals | Screw terminal M6 of tinned brass, maximum torque 3Nm. With terminal spacers for rated voltage above 660Vac. |
| Mounting and grounding | M12 stud with washer and nut on bottom of aluminum can. Maximum torque 12Nm |
| Cooling method | Naturally air-cooled or force air cooling |
| Rated Voltage | μF | Imax A @60Hz |
Stud | Case Size | Weight (kg) | Figures | ||
|---|---|---|---|---|---|---|---|---|
| UNac | Urms | D | H | |||||
| 250Vac | 250Vac | 175 | 18 | M12x12 | 60 | 140 | 0.46 | Fig. A |
| 250Vac | 250Vac | 250 | 24 | M12x12 | 66 | 160 | 0.60 | |
| 275Vac | 275Vac | 150 | 18 | M12x12 | 60 | 140 | 0.45 | |
| 300Vac | 300Vac | 100 | 16 | M12x12 | 60 | 140 | 0.46 | |
| 300Vac | 300Vac | 200 | 24 | M12x12 | 66 | 140 | 0.53 | |
| 1000Vdc | 640Vac | 200 | 48 | M12x16 | 96 | 165 | 1.28 | Fig. B |
| 1200Vac | 850Vac | 10 | 16 | M12x12 | 60 | 100 | 0.42 | |
| 1200Vac | 850Vac | 30 | 16 | M12x12 | 66 | 160 | 0.65 | |
| 1200Vac | 850Vac | 47 | 24 | M12x16 | 89 | 165 | 1.17 | |

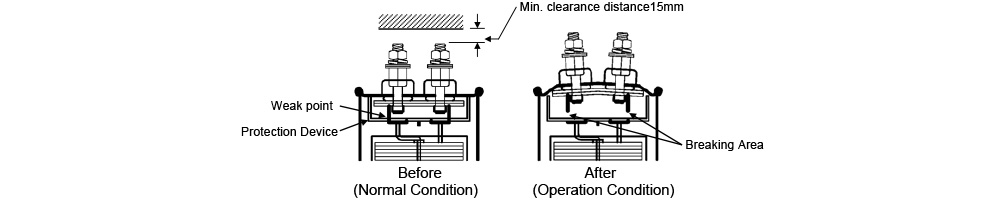

Protection Device Operating
It senses the build-up of pressure within the capacitor and interrupts the internal connections cutting the capacitor out of the circuit before rupture can occur.
(1) Without terminal spacers

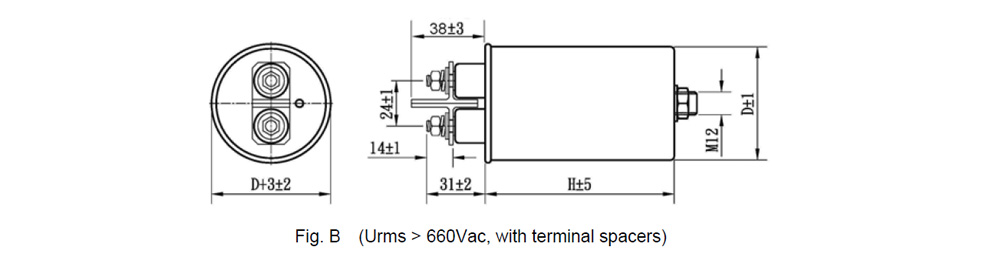

(2) With terminal spacers
