Performance of High Energy Storage Capacitors:
| Reference Standards | IEC 61071; IEC 60871 |
|---|---|
| Installation | Indoor use, maximum above sea level 1000M |
| Capacitance Tolerance | -5%/+10% (Optional for ±5% or ±10%) |
| Operating Temperature of Case | -25℃ to +60℃ |
| Dielectric | Polypropylene film |
| Dissipation Factor | < 0.1% |
| Test Voltage Between Terminals | Unx1.25 V, 10s |
| Cooling method | Naturally air-cooled |
Specification of Energy Storage Capacitors
| kVDC | uF | Energy kJ | Reverse Voltage % | Peak Current kA | ESL nH |

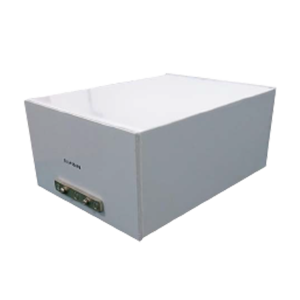

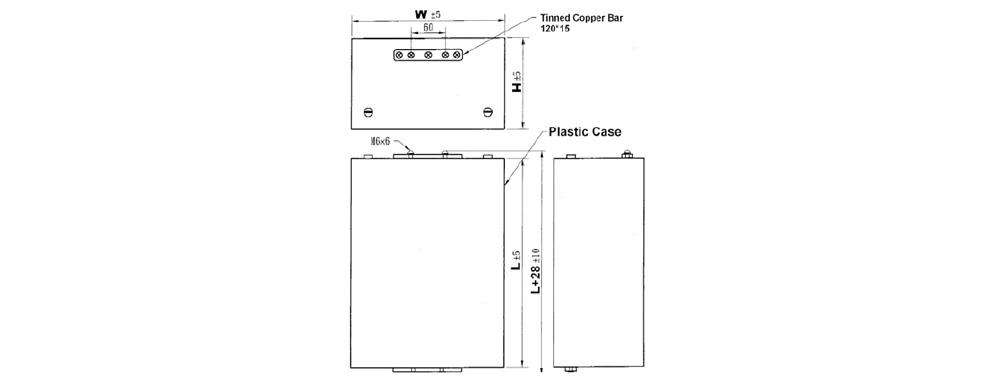

Design Life | L*W*H (mm) | Approx. Weight(kg) | PART NUMBER |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 1 | 1.25 | 80 | 100 | < 35 | 1x104 | 395*270*160 | 18.6 | 800102D00050300 |
| 100 | 0.04 | 0.2 | 80 | 100 | < 50 | 1x104 | 185*152*80 | 3.4 | 8004B2D00010400 |
Other design are available.
