Applications
DC linking or DC filtering in Voltage converters, Frequency converters, Traction drives, Industrial drives, UPS, Medical equipment
Features
- High impulse discharge current capability
- Very low stray inductance
- Extremely low losses at high frequencies
- Highest RMS current rating (≦100 A)
- Casing material UL94 V-0
- Resistance to heavy duty shock and vibration
- Long life expectancy and high reliability
Specification and Performance
| Standards | IEC 61071, IEC 61881-1 |
| Installation | Indoor use, maximum above sea level 1000M |
| Capacitance tolerance | -5%/+10% (optional for ±5% or ±10%) |
| Operating temperature of case | -40℃ to +80℃ |
| Dielectric | Metallized polypropylene film with self-healing technology |
| Dissipation factor | < 0.1% |
| Test voltage between terminals | Unx1.5 VDC, 10s |
| Test voltage between terminals and case | Unx2 VDC+1000 VAC, 10s |
| Equivalent series inductance (ESL) | < 30 nH |
| Filling | Epoxy resin, UL94 V-0 |
| Casing material | Plastic, UL94 V-0 |

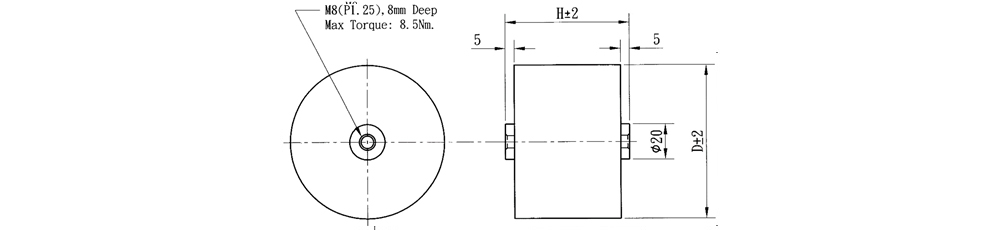

| Terminals | M8 female thread terminals of tinned brass, maximum torque 8.5Nm. |
| Cooling method | Naturally air-cooled or force air cooling |
UNDC = 900VDC
| Type | Voltage VDC | μF | ESR (mΩ) | Rth (K/W) | Imax. (A) | Ip (A) | Is (A) | D | H | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| PE1-9-U2505 | 900 | 25 | 0.6 | 4.8 | 80 | 750 | 2250 | 92 | 52 | 0.3 |
| PE1-9-U1006 | 900 | 100 | 0.8 | 6.1 | 50 | 1000 | 3000 | 92 | 77 | 0.4 |
| PE1-9-U1506 | 900 | 150 | 0.9 | 4.7 | 52 | 1050 | 3150 | 92 | 87 | 0.8 |
UNDC = 1250VDC
| Type | Voltage VDC | μF | ESR (mΩ) | Rth (K/W) | Imax. (A) | Ip (A) | Is (A) | D | H | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| PE1-12-U5005 | 1250 | 50 | 1.0 | 8.0 | 50 | 600 | 1800 | 92 | 70 | 0.4 |
| PE1-12-U7505 | 1250 | 75 | 1.3 | 6.3 | 45 | 750 | 2250 | 92 | 80 | 0.5 |
UNDC = 1800VDC
| Type | Voltage VDC | μF | ESR (mΩ) | Rth (K/W) | Imax. (A) | Ip (A) | Is (A) | D | H | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| PE1-18-U2505 | 1800 | 25 | 1.3 | 9.1 | 42 | 500 | 1500 | 92 | 77 | 0.5 |
| PE1-18-U3505 | 1800 | 35 | 1.8 | 6.2 | 38 | 420 | 1260 | 92 | 87 | 0.5 |
UNDC = 2150VDC
| Type | Voltage VDC | μF | ESR (mΩ) | Rth (K/W) | Imax. (A) | Ip (A) | Is (A) | D | H | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| PE1-21-U7504 | 2150 | 7.5 | 4.2 | 13.0 | 20 | 180 | 540 | 92 | 77 | 0.5 |
| PE1-21-U2505 | 2150 | 25 | 2.5 | 6.2 | 32 | 400 | 1200 | 92 | 85 | 0.5 |
* Other voltage, current, and capacitance values are available on request.
