Power Electronic Capacitors

As one of top power electronics capacitor manufacturers, YUHCHANG offers a range of capacitors to suit different applications. To produce best power capacitors, we use the best latest techniques and materials. During long-term efforts in this field, we have been recognized as a specialist offering at the market high-quality products and deeply confirmed by the industry.

The capacitors for power electronics can be used for a wide variety of applications. Here is type of capacitors we can supply:

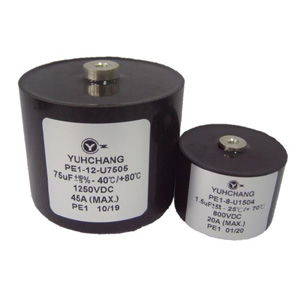

PE1
PE2

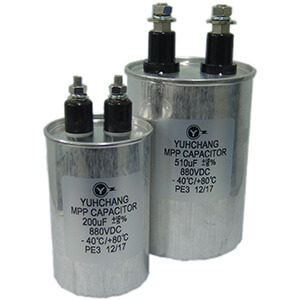

PE3
YBP
CCC
Applications:

DC linking or DC filtering in Voltage converters, Frequency converters, Traction drives, Industrial drives, UPS, Medical equipment

Features:
  1. High impulse discharge current capability
  2. Very low stray inductance
  3. Extremely low losses at high frequencies
  4. Highest RMS current rating (≦100 A)
  5. Casing material UL94 V-0
  6. Resistance to heavy duty shock and vibration
  7. Long life expectancy and high reliability
Specification and Performance:
Standards IEC 61071, IEC 61881-1
Installation Indoor use, maximum above sea level 1000M
Capacitance tolerance -5%/+10% (optional for ±5% or ±10%)
Operating temperature of case -40℃ to +80℃
Dielectric < 0.1%
Test voltage between terminals Unx1.5 VDC, 10s
Test voltage between terminals and case Unx2 VDC+1000 VAC, 10s
Equivalent series inductance (ESL) < 30 nH
Filling Epoxy resin, UL94 V-0
Casing material Polyester tape, UL94 V-0
Terminals M8 female thread terminals of tinned brass, maximum torque 8.5Nm.
Cooling method Naturally air-cooled or force air cooling
