Automatic Power Factor Regulator

Automatic Power Factor Regulators

Feature:

  1. Power Failure Auto Resume
  2. Automatic / Manual Operation
  3. Programmable Margin of Target PF
  4. Frequency 50/60Hz Auto-Detecting
  5. Over-Compensation Protected
  6. With PF Abnormal Alarm Indicator and Contact
  7. Circular or Weight sequence controls
  8. Free CK Ratio Setting
  9. Built-in RS-485 interface
  10. Switch In and Out Delay Time Programmable
  11. PC Communication and Software (Optional)
SPECIFICATION:
Model Steps Operating Voltage Operating Voltage Dimension (mm) Panel Cut-Out (mm)

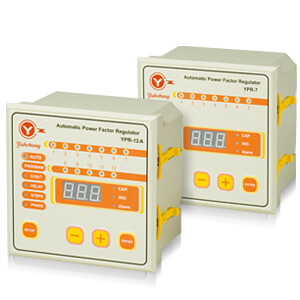

YPR-7 7-steps (programmable) AC 220/380V ±20%
50/60Hz auto detecting
-10℃ to +60℃ 144x144x98
(L x W x D)
138 x 138
YPR-12A 12-steps (programmable)
  1. Phases: 1 or 3 phase programmable
  2. Setting range of target power factor: 0.7(IND.) to 0.7(CAP.)
  3. Upper and lower margin of target PF:Programmable from 0.00 to 0.10
  4. Switch-in delay time: Programmable from 1 to 995 seconds
  5. Switch-out delay time: Programmable from 1 to 30 seconds
  6. Steps setting: 1 to 7 steps (YPR-7), 1 to 12 steps (YPR-12A)
  7. Switching sequence mode: circular or weight modes
  8. Abnormal PF release setting: Programmable from 0.00 to 0.60
  9. CT spec: Secondary 5A
  10. Built-in RS-485 communication terminals
  11. Capacity of contacts: 250V 10A
  12. Consumption: Max. 9 VA
  13. Approximately weight: 810g
  • More information, please refer to the attached: Automatic Power Factor Regulators
