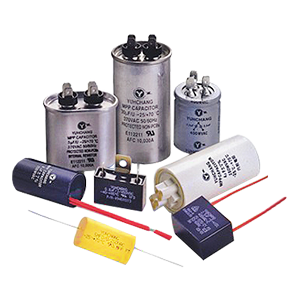

Electrical Apparatus Capacitors

Categories of Electrical Apparatus Capacitor-
Fire-retardant plastic case, Fire-retardant epoxy resin filling
Pictures Model Application Features Certificate
SCA Motor running, Lighting, Electronic equipment UL leads

SCB UL leads, Case with Straight mounting tab
SCC UL leads, Case with angled mounting tab
SCE UL leads, Case with integral mounting tab
SFA Double quick-connect terminals
SFB Double quick-connect terminals, Case with straight mounting tab
SFE Double quick-connect terminals, Case with integral mounting tab
SFE-1 Single quick-connect terminals (terminals aligned in a line), Case with integral mounting tab
SFE-N Single quick-connect terminals (terminals aligned in parallel), Case with integral mounting tab
SGA Soldering terminals
SGB Soldering terminals, Case with straight mounting tab
SGC Soldering terminals, Case with angled mounting tab
SGE Soldering terminals, Case with integral mounting tab
SWA Induction cooker, Motor running, Lighting, Power electronic equipment Tinned copper wires
SPA Motor running, Power electronic, equipment linned copper terminals for soldering
SLE Motor running, Power electronic, equipment Screwing terminals, Case with integral mounting tab
FT Electronic equipment Flat style, Tinned copper wires or UL leads, Fire-retardant taping, Fire-retardant epoxy resin filling
YT Round style, Tinned copper wires or UL leads, Fire-retardant taping, Fire-retardant epoxy resin filling
Fire-retardant plastic case, or aluminum case
Pictures Model Application Features Certificate
YC Motor running, Lighting, Electronic equipment UL leads, Fire-retardant plastic case or aluminum case, Fire-retardant epoxy resin filling
YC+B UL leads, Fire-retardant plastic case or Aluminum case, Mounting stud on the bollom, Fire-retardant epoxy resin filling
YF Quick·connect terminals, Aluminum case with PVC tube
YF+B Quick-connect terminals, Aluminum case with PVC tube, Mounting stud on the bottom
RBC Lighting Four-way wire-grip connector with internal discharge resistor, Aluminum case with PVC tube
RC Four-way wire-grip connector with internal discharge resistor, Fire-retardant plastic case
RC+B Four-way wire-grip connector with internal discharge resistor, Fire-retardant plastic case, Mounting stud on the bottom
UL 810 approval with AFC 10,000A and Safety class P2
Pictures Model Application Features Certificate
SCA
SCB
SCE
Motor running, Lighting, Power electronic equipment Box style, UL leads, Fire-retardant plastic case, Fire-retardant epoxy resin filling Type SCB case with mounting tab Type SCE case with integral mounting tab
SFA
SFB
SFE
Box style, Quick-connect terminals, Fire-retardant plastic case, Fire-retardant epoxy resin filling Type SFB case with mounting tab Type SFE case with integral mounting tab
SWA Box style, Tinned copper wires, Fire-retardant plastic case, Fire·retardant epoxy resin filling
YFP Round style, Quick-connect terminals, Aluminum case, Internal protective device
YFP_B Round sl)1e, Quick-connect terminals, /!Juminum case, Internal protective device, Case with mounting stud on the bottom
RFP Oval style, Quick-connect le而inals, Aluminum case, Internal protective device
RBC Lighting Round style, four-way wire-grip connector with internal discharge resistor, Aluminum case with PVC tube
Download Full Documents about electrical apparatus capacitors

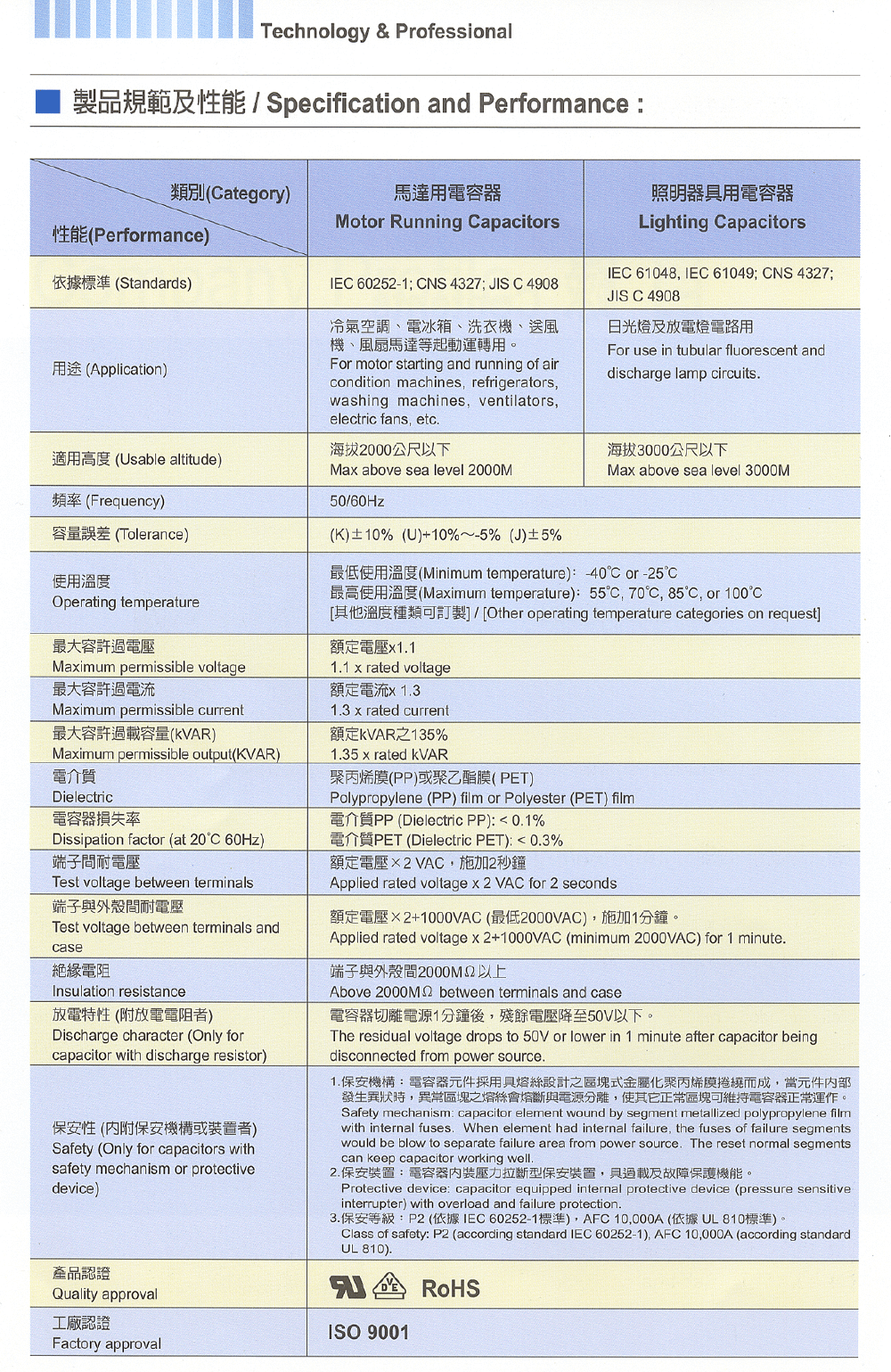

Specification and Performance
  • Electrical Properties of Metallized Film
  • Self-healing Mechanism
Safety
  • Operation of Internal Safety Mechanism
  • Operation of Internal Protective Device
