性能
| 依據標準 |
IEC 60871 |
| 安裝地點 | 室內使用，海拔最高 3000M |
| 電容容許誤差 | -5%/+10% (可選配 ±5% 或 ±10%) |
| 外殼工作溫度 | -25℃ 至 +70℃ |
| 電介質 | 聚丙烯薄膜 |
| 損耗因數 | < 0.1% |
| 端子間耐電壓 | Unx1.25 V，持續10秒 |

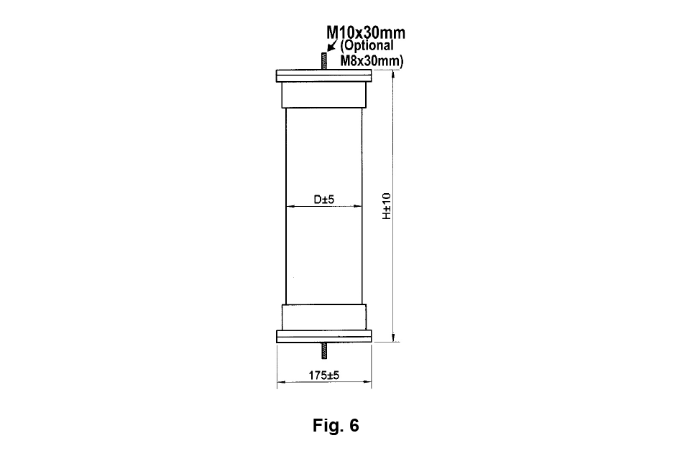

| 端子 | M10*30 mm (可選配 M8*30 mm 或 鍍錫黃銅圓頭內螺紋端子 ) |
| 冷卻方法 | 自然風冷 |
規格
| 電壓 (UN) KVAC |
容量 nF |

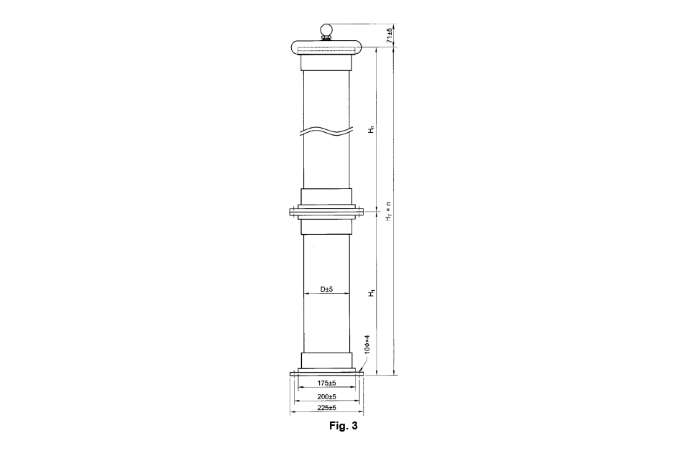

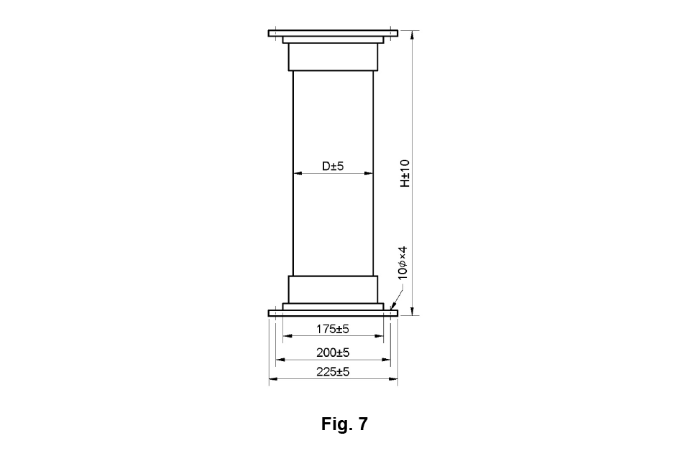

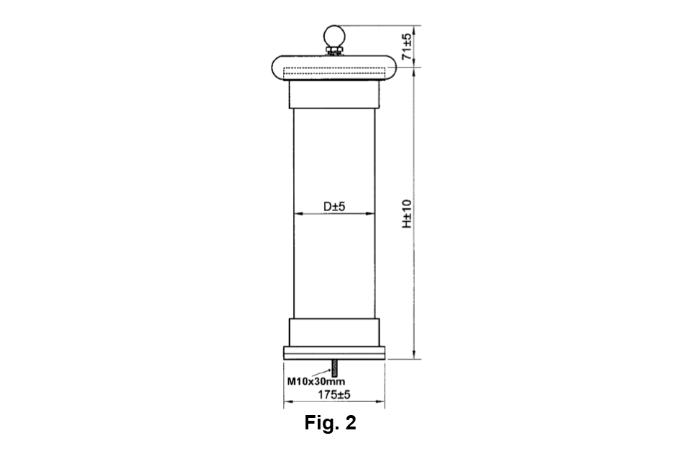

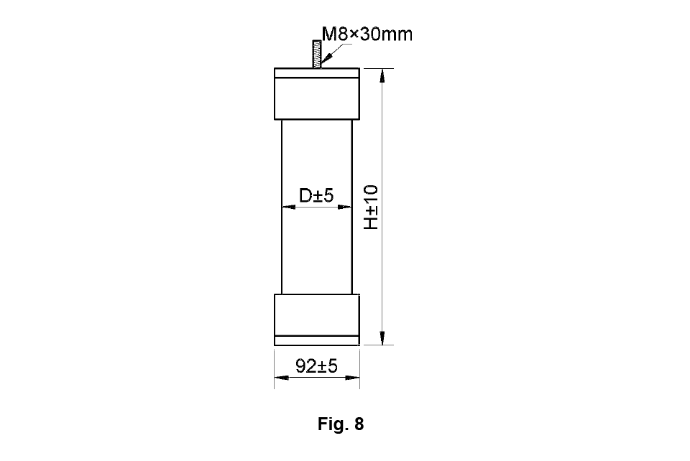

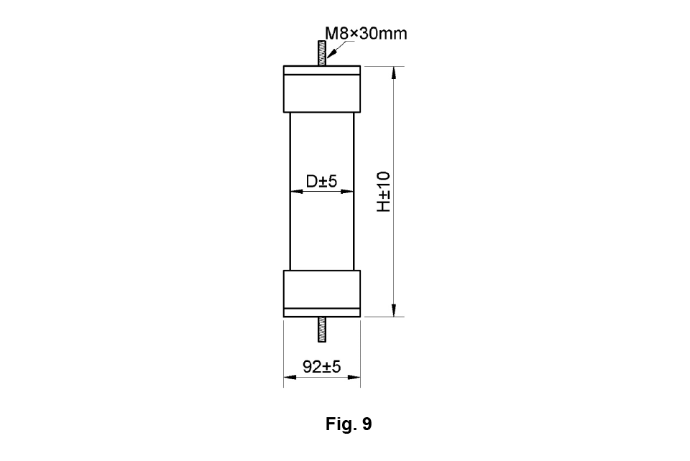

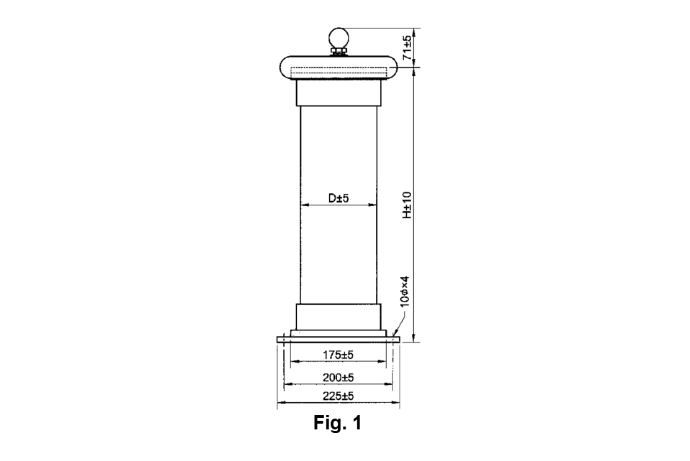

管徑 D (mm) | 高(mm) | 概重(kg) | 參考圖 | 料號 |
| 25 | 0.1 | 76.3 | 400 | 3 | 8 | 4001D1A60025300 |
| 25 | 1 | 76.3 | 400 | 3 | 8 | 4001C1A60025300 |
| 25 | 50 | 140 | 500 | 16 | 4 | 4005B1A60025300 |
| 50 | 8 | 140 | 500 | 16 | 1 | 4008C1A60050300 |
| 50 | 50 | 140 | 600 | 18 | 1 | 4005B1A60050301 |
| 100 | 0.1 | 140 | 600 | 18 | 1 | 4001D1A60010400 |
| 100 | 0.5 | 140 | 600 | 18 | 1 | 4005D1A60010400 |
| 100 | 1 | 140 | 800 | 22 | 1 | 4001C1A60010401 |
| 100 | 1 | 140 | 600 | 17 | 1 | 4001C1A60010402 |
| 150 | 0.1 | 140 | 650 | 18 | 1 | 4001D1A60015400 |
| 150 | 0.5 | 140 | 650 | 18.2 | 1 | 4005D1A60015401 |
| 150 | 1 | 140 | 1000 | 53 | A | 4001C1A60015401 |
| 360 | 1 | 140 | HT=H*3=2700 H=900 | 75 | C | 4001C1A60036400 |
| 500 | 0.5 | 140 | HT=H*5=3000 H=600 | 85 | F | 4005D1A60050400 |
| 20 | 100 | 76.3 | 300 | 3 | 9 | 4001A1D00020302 |
| 25 | 50 | 76.3 | 300 | 3 | 8/9 | 4005B1D00025300 |
| 50 | 2 | 76.3 | 500 | 4 | 8/9 | 4002C1D00050300 |
| 50 | 5 | 76.3 | 500 | 4 | 9 | 4005C1D00050300 |
| 50 | 10 | 76.3 | 500 | 4 | 9 | 4001B1D00050300 |
| 50 | 15 | 76.3 | 500 | 4 | 9 | 4015C1D00050300 |
| 50 | 25 | 76.3 | 400 | 3 | 8/9 | 4025C1D00050300 |
| 50 | 100 | 76.3 | 500 | 4 | 8/9 | 4001A1D00050302 |
| 60 | 200 | 140 | 850 | 23 | 4 | 4002A1D00060300 |
| 75 | 29 | 140 | 500 | 12 | 4 | 4002B1D00075300 |
| 80 | 50 | 140 | 500 | 12 | 2 | 4005B1D00080300 |
| 100 | 2 | 140 | 600 | 14 | 5 | 4002C1D00010400 |
| 100 | 40 | 140 | 600 | 14 | 6 | 4004B1D00010401 |
| 120 | 1 | 76.3 | 500 | 4 | 9 | 4001C1D00012300 |
| 150 | 4 | 140 | 600 | 18 | 1 | 4004C1D00015400 |
| 150 | 4 | 140 | 600 | 17 | 7 | 4004C1D00015401 |
| 150 | 20 | 140 | 1000 | 25 | 4 | 4002B1D00015400 |
| 150 | 50 | 140 | 1250 | 29 | 1 | 4005B1D00015400 |
| 200 | 0.3 | 140 | 1000 | 25 | 4 | 4003D1D00020401 |
| 200 | 1 | 140 | 1000 | 24 | 4 | 4001C1D00020400 |
| 200 | 1 | 140 | 1000 | 23 | 7 | 4001C1D00020401 |
| 200 | 2 | 140 | 1000 | 25 | 4 | 4002C1D00020400 |
| 200 | 2 | 140 | 800 | 19 | 4 | 4002C1D00020401 |
| 200 | 2 | 140 | 800 | 21 | 7 | 4002C1D00020402 |
| 240 | 50 | 140 | HT=H*4=2160 H=540 | 65 | B | 4005B1D00024400 |
| 300 | 2 | 140 | 1000 | 25 | 4 | 4002C1D00030400 |
| 300 | 3 | 140 | 1130 | 27 | 1 | 4003C1D00030400 |
| 300 | 4 | 140 | 1000 | 25 | 4 | 4004C1D00030400 |
| 400 | 1 | 140 | HT=H*2=1600 H=800 | 42 | D | 4001C1D00040401 |
| 400 | 3 | 140 | HT=H*2=1500 H=750 | 40 | E | 4003C1D00040400 |
| 600 | 1.5 | 140 | HT=H*2=2260 H=1130 | 53.3 | G | 4015C1D00060400 |
| 1400 | 2 | 140 | HT=H*7=4550 H=650 | 138 | H | 4002C1D00014500 |
