Characteristics
| High impulse discharge current capability |
| Very low stray inductance |
| Extremely low losses at high frequencies |
| Highest RMS current rating (≦100 A) |
| Casing material UL94 V-0 |
| Resistance to heavy duty shock and vibration |
| Long life expectancy and high reliability |
Specification
| Type | |
| Standards |
IEC 61071, IEC 61881-1 |
| Installation | Indoor use, maximum above sea level 1000M |
| Capacitance tolerance | -5%/+10% (optional for ±5% or ±10%) |
| Operating temperature of case | -40℃ to +80℃ |
| Dielectric | Metallized polypropylene film with self-healing technology |
| Dissipation factor |
< 0.1% |
| Test voltage between terminals | Unx1.5 VDC, 10s |
| Test voltage between terminals and case | Unx2 VDC+1000 VAC, 10s |
| Equivalent series inductance (ESL) | < 30 nH |
| Filling | Epoxy resin, UL94 V-0 |
| Casing material | Polyester tape, UL94 V-0 |

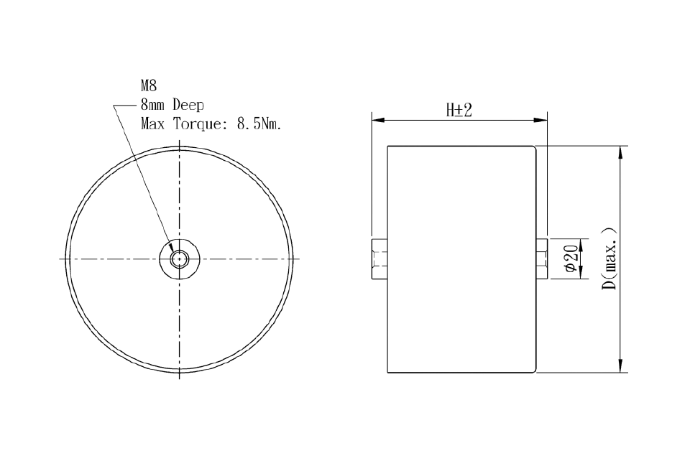

| Terminals | M8 female thread terminals of tinned brass, maximum torque 8.5Nm. |
| Cooling method | Naturally air-cooled or force air cooling |
