Specification and Performance
| Specification |
|
| Standards |
IEC 61071 |
| Installation | Indoor use, maximum above sea level 2000M, maximum permissible humidity 95% |
| Capacitance tolerance | ±10%,-5%/ +10%, or ±5% |
| Operating temperature of case | -25℃ to +70℃ |
| Dielectric | Metallized polypropylene film with self-healing technology |
| Dissipation factor | < 0.1% |
| Test voltage between terminals | Un x 2.15 VDC, 10s |
| Test voltage between terminals and case | 3000 Vac, 10s |
| Insulation resistance (Between terminals and case) | above 2000MΩ |
| Equivalent series resistance (ESR) | <10mΩ |
| Equivalent series inductance (ESL) | < 50nH |
| Impregnated oil | Non PCB, Rapeseed oil |
| Safety device | Overpressure disconnector UL 810 approval, AFC 10000A, File no. E112211 |
| Discharge resistor (Optional) | The residual voltage drops to 50V or lower in 1 minute after capacitor being disconnected from power source. |

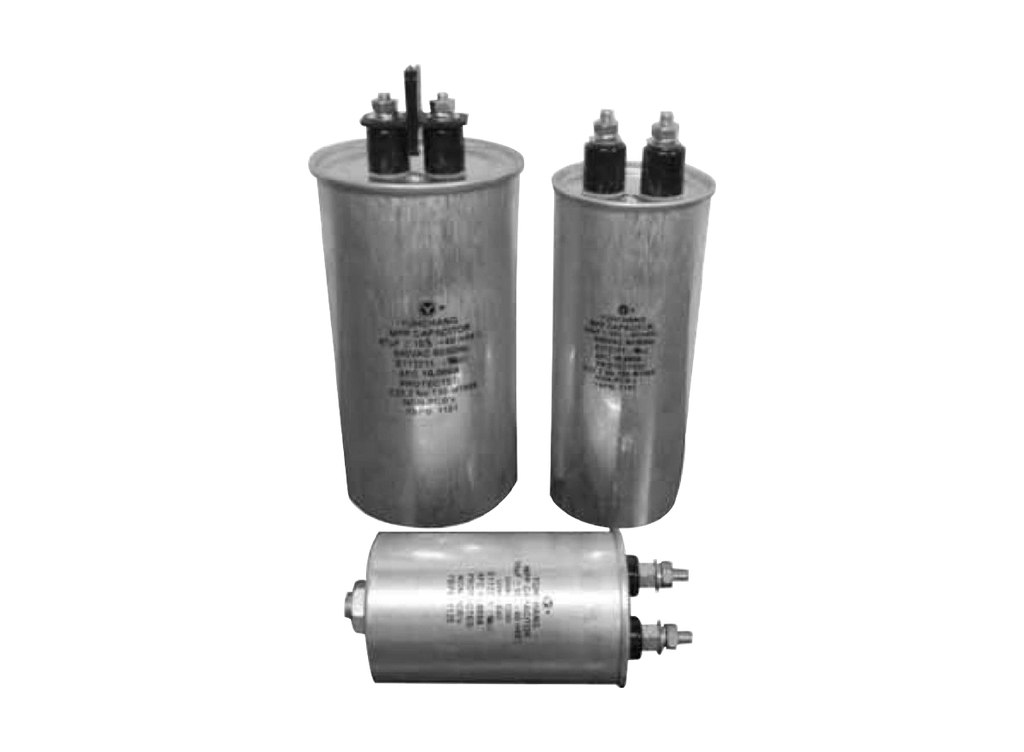

| Case | Cylindrical aluminum can |

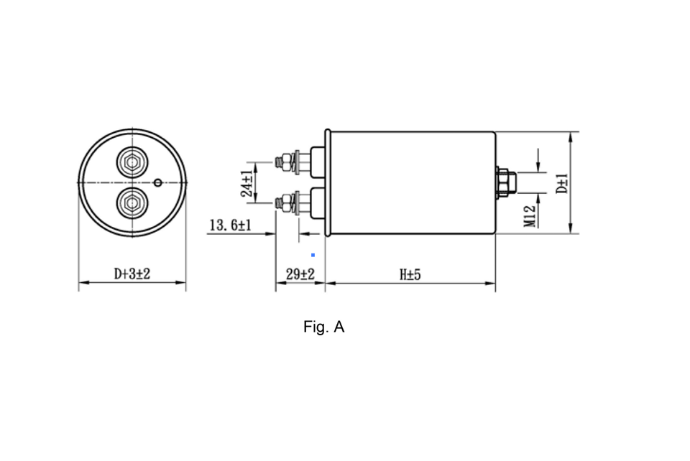

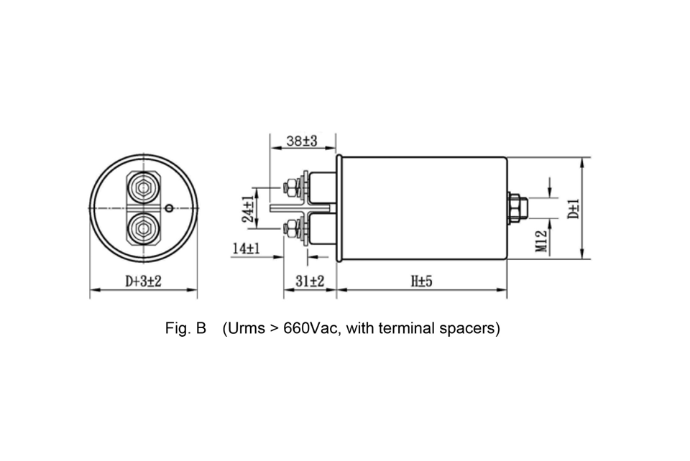

| Terminals | Screw terminal M6 of tinned brass, maximum torque 3Nm. With terminal spacers for rated voltage above 660Vac. |
| Mounting and grounding | M12 stud with washer and nut on bottom of aluminum can. Maximum torque 12Nm |
| Cooling method | Naturally air-cooled or force air cooling |
