Characteristics
| Reference Standards | IEC 61071; IEC 60871 |
| Installation | Indoor use, maximum above sea level 1000M |
| Capacitance tolerance | -5%/+10% (Optional for ±5% or ±10%) |
| Operating temperature of case | -25℃ to +60℃ |
| Dielectric | Polypropylene film |
| Dissipation factor | < 0.1% |
| Test voltage between terminals | Unx1.25 V, 10s |
| Cooling method | Naturally air-cooled |
Specifications
| kVDC | uF |
Energy |
Reverse Voltage |
Peak Current |
ESL |

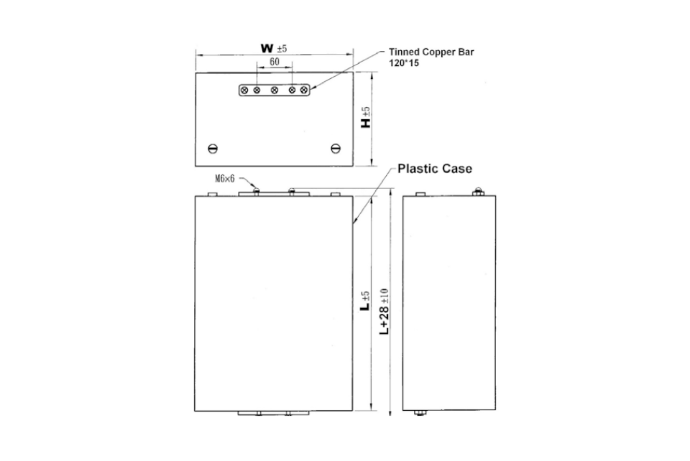

Design Life | L*W*H (mm) | Approx. Weight | PART NUMBER |
| 50 | 1 | 1.25 | 80 | 100 | <35 | 1x104 | 395*270*160 | 18.6 | 800102D00050300 |
| 100 | 0.04 | 0.2 | 80 | 100 | <50 |
1x104 | 185*152*80 |
3.4 | 8004B2D00010400 |
