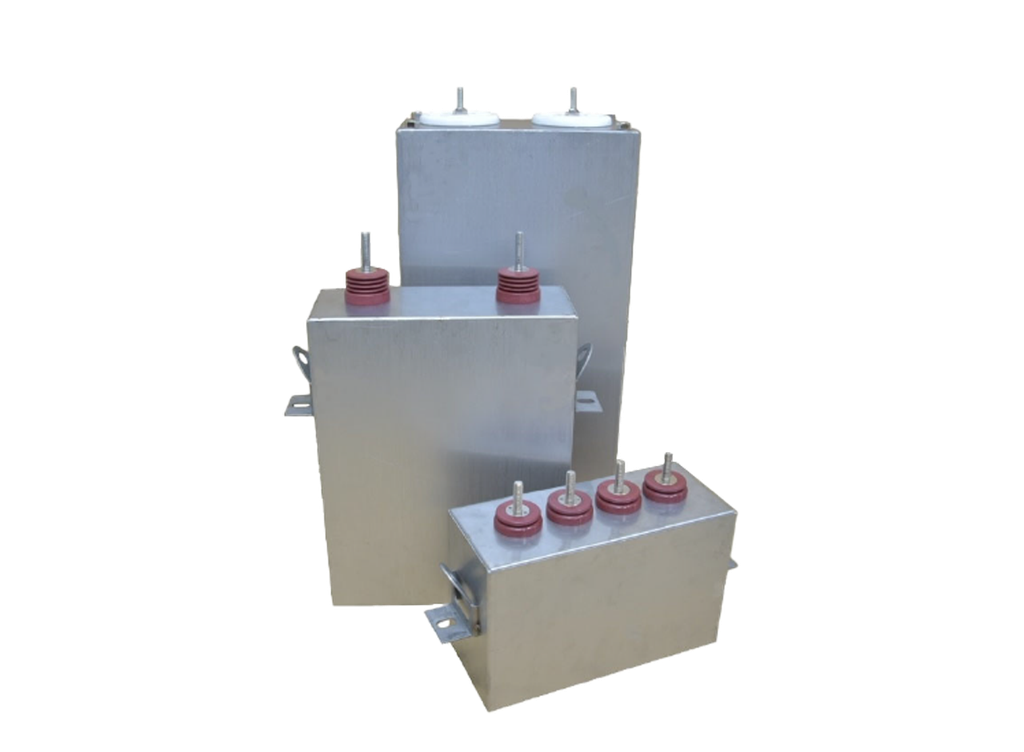

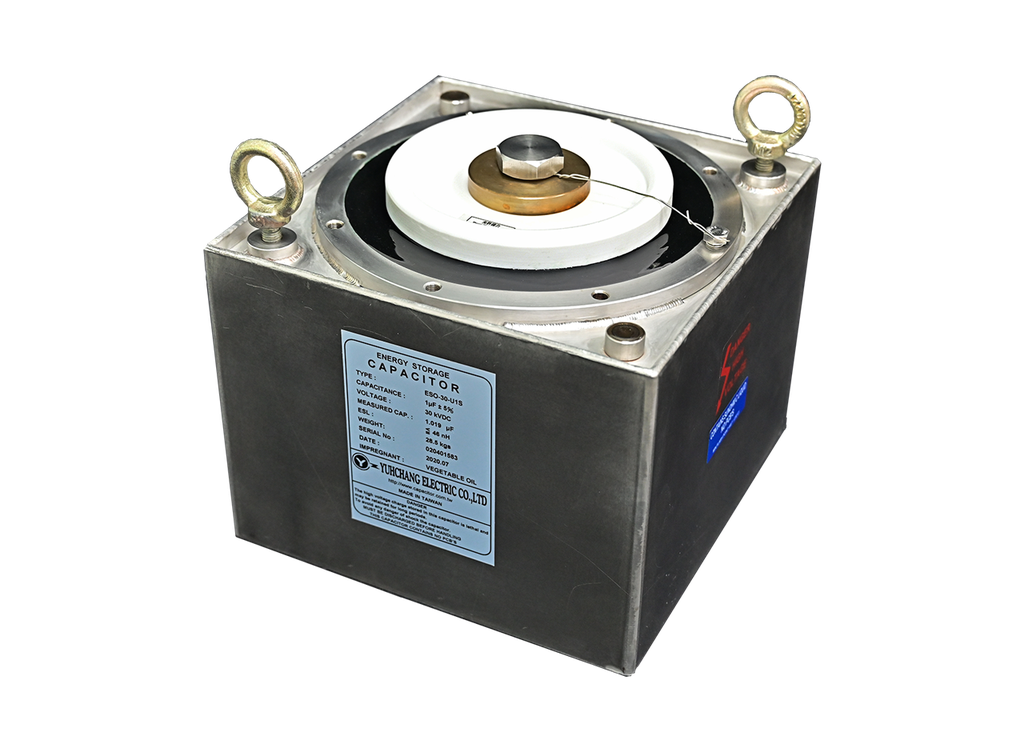

Characteristics
| Standard | IEC 61071 |
| Capacitance tolerance | ±10％ (optional ±5％) |
| Rated DC Voltage | up to 50kV |
| Dielectric | Paper or Polypropylene film |
| Self-inductance (ESL) | < 100nH |
| Test voltage between terminals | 1.25xUn / 10s at 25±5°C |
| Test voltage between terminals and case | 1.5xUn VAC / 60s at 60Hz 25±5°C |
| Operating temperature | -40°C / +70°C (optional 85℃) |
| Storage temperature | -40°C / +85°C |
| Case | Rectangular non-magnetic stainless steel |
| Filling material | according the design "Series" |
| Cooling method | Natural |
Specifications
| Un DC |
uF | Type | L | W | H | Ref. Figures | Weight kg |
| 5000 | 4000 | ESAS | 420 | 340 | 880 | Fig-3 | 210 |
| 44000 | 52 | ESAS | 340 | 370 | 740 | Fig-4 | 162 |
| 900 | 4000 | ESBS | 340 | 125 | 215 | Fig-1 or -2 | 11.1 |
| 900 | 24000 | ESBS | 340 | 175 | 580 | Fig-1 or -2 | 40.4 |
| 2000 | 1000 | ESBS | 340 | 125 | 700 | Fig-1 or -2 | 14.0 |
| 2000 | 5000 | ESBS | 340 | 175 | 285 | Fig-1 or -2 | 49.4 |
| 5000 | 150 | ESBS | 340 | 125 | 285 | Fig-3 | 14.8 |
| 5000 | 750 | ESBS | 340 | 175 | 650 | Fig-3 | 46.3 |
| 5000 | 4000 | ESBS | 470 | 270 | 870 | Fig-3 | 135 |
| 10000 | 300 | ESBS | 530 | 185 | 660 | Fig-3 | 77.85 |
| 10000 | 2000 | ESBS | 360 | 360 | 830 | Fig-3 | 128 |
| 15000 | 178 | ESBS | 400 | 370 | 370 | Fig-3 | 62 |
| 20000 | 60 | ESBS | 530 | 185 | 690 | Fig-3 | 82.3 |
| 40000 | 10 | ESBS | 530 | 185 | 570 | Fig-4 | 66.9 |
| 44000 | 52 | ESBS | 405 | 335 | 750 | Fig-4 | 132 |
| 12000 | 50 | ESCS | 350 | 250 | 480 | Fig-3 | 64 |
| 30000 | 1 | ESCS | 290 | 290 | 220 | Fig-4 | 34 |
| 15000 | 100 | ESCS | 420 | 220 | 370 | Fig-3 | 48 |
| 15000 | 178 | ESCS | 420 | 370 | 370 | Fig-3 | 80 |
| 7000 | 10 | ESFS | 140 | 110 | 220 | Fig-2 | 7.2 |
| 10000 | 50 | ESFS | 290 | 240 | 340 | Fig-2 | 33 |
| 50000 | 2 | ESFS | 300 | 290 | 220 | Fig-4 | 58 |
