Power Film Capacitors

Conduction Cooled Power Film Capacitors

Yuhchang's Water Conduction Cooled Power Film Capacitors are designed to meet the high demands of medium to high-frequency induction heating power supplies. These power film capacitors stand out due to their dry-type construction using polypropylene dielectric, which ensures a compact, miniature size. This design not only provides high stability but also ensures a very low series inductance. The conduction-cooled nature of these capacitors allows for efficient heat dissipation, making them capable of continuous operation at high currents.

Unique Features of Power Film Capacitor

Yuhchang's power film capacitors boast several features that make them ideal for a range of applications. Firstly, their low series inductance design ensures minimal energy loss, making them highly efficient. The high stability of these capacitors ensures that they maintain performance over time, even under demanding conditions. Additionally, the conduction cooling feature means that the capacitors can effectively manage heat, which is crucial for maintaining performance and longevity in high current applications.

Wide Applications of Conduction Cooled Capacitors

These water cooled capacitors are incredibly versatile and can be used in various industries that require reliable power supply solutions. They are particularly well-suited for applications in industrial drives, voltage converters, frequency converters, UPS systems, and medical equipment. The ability to operate continuously at high currents makes them ideal for environments where performance and reliability are critical.

Why Choose Yuhchang Power Film Conduction Cooled Capacitors?

Choosing Yuhchang's power film capacitors means investing in a product that offers a combination of efficiency, reliability, and longevity. These water cooled capacitors are built to meet the rigorous standards of IEC 61071, ensuring they can withstand the demands of modern industrial applications. Contact us or visit our website for more series of Power Capacitor products.

Specification
Type Nominal
Capacitance
uF±10%
@1kHz		 Rated
Voltage
(Vrms)		 Max.
Current
(Irms)		 Max.
Power
(kVAr)		 Frequency
Range(kHz)
(Full Load)		 ESL
nH		 Dimensions
mm		 Approx.
Weight

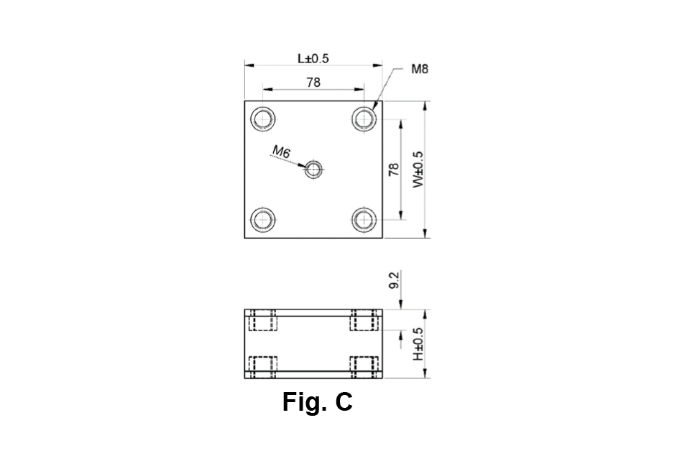

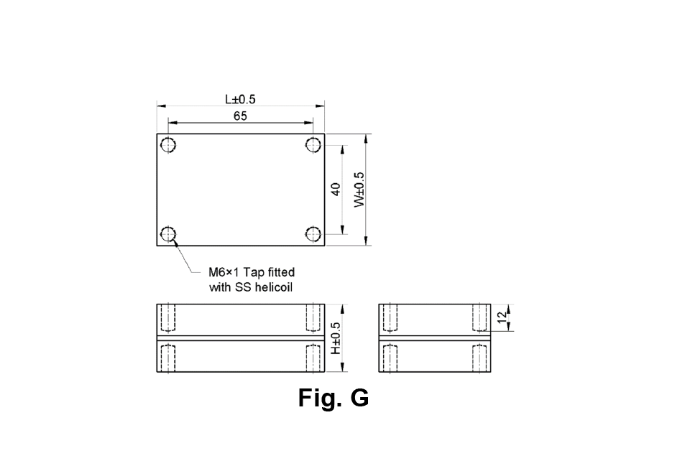

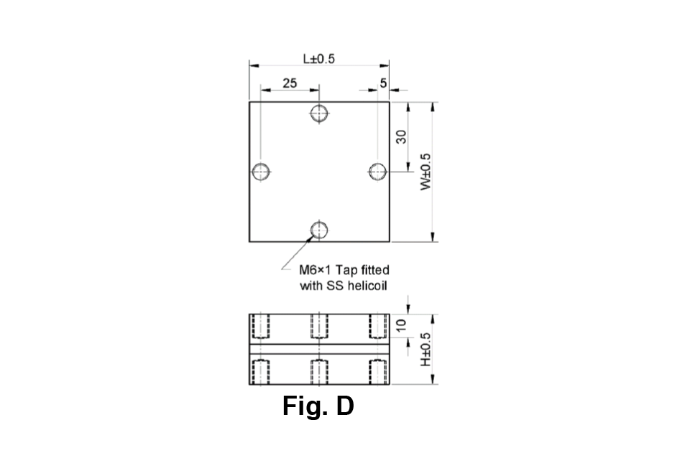

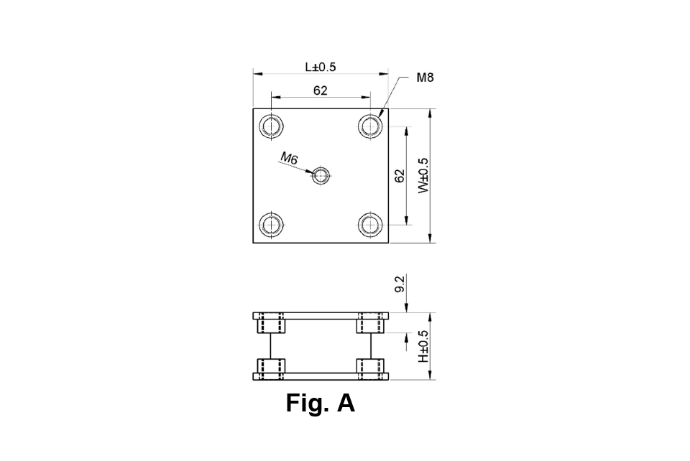

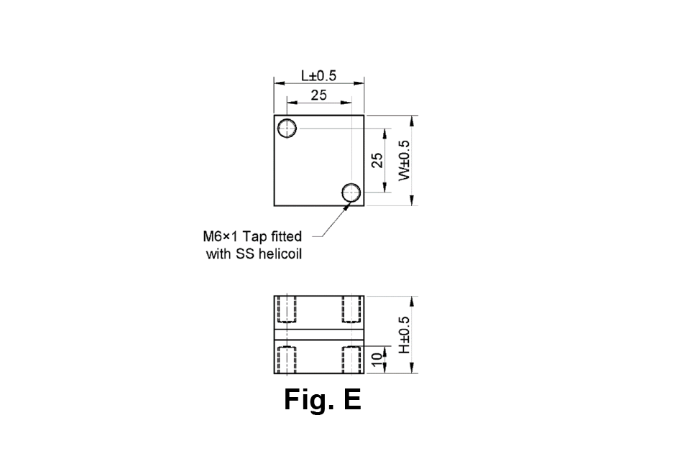

(kg)		 Fig.
L  W/D  H
180/200 kVAr
CC1-11U2502E  0.025 1100 200 180 947~1415  < 3  35 35 30.2 0.2 E
CC1-11U5002E  0.05 1100 200 180 474~708  < 3  35 35 30.2 0.2 E
CC2-10U1003F  0.1 1000 250 200 318~497  < 3  68 30 30 0.5 F
CC2-9U1703E  0.17 900 250 200 231~293  < 3  35 35 30.2 0.2 E
CC2-8U2503E  0.25 800 270 200 199~232  < 3  35 35 30.2 0.2 E
CC2-7U3303E  0.33 700 300 200 197~217  < 3  35 35 30.2 0.2 E
CC2-7U6603F  0.66 700 400 200 98~193  < 3  68 30 30 0.5 F
CC2-6U6603E  0.66 600 350 200 134~148  < 3  35 35 30.2 0.2 E
CC2-6U1334F  1.33 600 450 200 66~121  < 3  68 30 30 0.5 F
CC2-4U2404F  2.4 450 500 200 65~85  < 3  68 30 30 0.5 F
300 kVAr
CC3-10U2003A  0.2 1000 500 300 238~663  < 5  78 78 34 0.5 A
CC3-10U2003D  0.2 1000 500 300 238~663  < 5  60 60 30 0.5 D
CC3-7U6603A  0.66 700 500 300 148~201  < 5  78 78 34 0.5 A
CC3-6U1004G  1 600 650 300 133~224  < 5  75 50 30.2 0.5 G
CC3-6U1304G  1.3 600 650 300 102~172  < 5  75 50 30.2 0.5 G
CC3-5U2604G  2.6 500 650 300 73~86  < 5  75 50 30.2 0.5 G
CC3-4U5004A  5 400 800 300 60~68  < 5  78 78 34 0.5 A
CC3-4U5004D  5 400 800 300 60~68  < 5  60 60 40 0.5 D
CC3-4U5004G  5 400 800 300 60~68  < 5  75 50 30.2 0.5 G
400 kVAr
CC4-10U1003D  0.1 1000 400 400 637 < 5  60 60 30 0.6 D
CC4-10U2003D  0.2 1000 400 400 318 < 5  60 60 30 0.6 D
CC4-10U3303A  0.33 1000 600 400 194~434  < 5  78 78 34 0.5 A
CC4-10U3303B  0.33 1000 600 400 193~434  < 5  78 78 34 0.5 B
CC4-10U3303D  0.33 1000 600 400 193~434  < 5  60 60 30 0.6 D
CC4-10U6603A  0.66 1000 600 400 96~217  < 5  78 78 34 0.5 A
CC4-10U6603D  0.66 1000 600 400 96~217  < 5  60 60 30 0.6 D
CC4-9U1334D  1.33 900 850 400 59~216  < 5  60 60 30 0.6 D
CC4-8U1004D  1 800 650 400 99~168  < 5  60 60 30 0.6 D
CC4-7U2604A  2.6 700 950 400 50~138  < 5  78 78 34 0.5 A
CC4-7U2604D  2.6 700 950 400 50~138  < 5  60 60 30 0.6 D
CC4-5U5004A  5 500 1000 400 51~80  < 5  78 78 34 0.5 A
CC4-5U5004D  5 500 1000 400 51~80  < 5  60 60 30 0.6 D
500 kVAr
CC5-11U1404C  1.4 1100 600 500 47~82  < 10  100 100 40 0.6 C
CC5-7U6304H  6.3 700 1000 500 26~51  < 10  53 82 71.5 1.1 H
CC5-7U8504H  8.5 700 1000 500 19~37  < 10  53 92 71.5 1.3 H
CC5-7U1005C  10 700 1000 500 16~32  < 10  100 100 40 0.6 C
Specification
Type Nominal
Capacitance
uF±10%
@1kHz		 Rated
Voltage
(Vrms)		 Max.
Current
(Irms)		 Max.
Power
(kVAr)		 Frequency
Range(kHz)
(Full Load)		 ESL
nH		 Dimensions
mm		 Approx.
Weight
(kg)		 Fig.
L  W/D  H
600 kVAr
CC6-10U3303D  0.33 1000 600 600 289 < 10  60 60 40 0.5 D
CC6-10U6603C  0.66 1000 700 600 145~197  < 10  100 100 40 0.6 C
CC6-7U1334D  1.33 700 950 600 147~180  < 10  60 60 40 0.5 D
CC6-7U2604C  2.6 700 1050 600 75~112  < 10  100 100 40 0.6 C
CC6-5U5004C  5 500 1200 600 76 < 10  100 100 40 0.6 C
CC6-5U5004D  5 500 1200 600 76 < 10  60 60 40 0.5 D
